This range of Soft Start units feature 2 separately adjustable parameters for starting torque and starting time together with control contact for pole-changing motors.

• single-phase controlled soft starter
• all devices for pole-changing motors
• dual-voltage, for 400V and 230V networks
• easy mounting, also for retrofitting into existing plants
• terminal arrangement suitable for switchgear connection
• for snap-mounting on 35mm standard rail
• integrated bypass relay
• no mains neutral conductor (N) required
• special voltages up to 640V
• also for single-phase applications
• degree of protection IP 20 (SAS 3 ... SAS 11)
• degree of protection IP 00 (SAS 11PUST, 22PUST)

The DuroStart Units are combined soft start and soft stop with 3 separately adjustable parameters starting torque, acceleration time and deceleration time.

• control (start/stop) with contact or voltage 10-42VDC
• two-phase controlled soft starter
• easy mounting, also for retrofitting into existing plants
• integrated bypass relay
• no mains neutral conductor (N) required
• parameterization by means of three potentiometers
• economically priced replacement for star/delta switches
• for mounting on top hat rail
• current reduction during acceleration
• very compact design, overall width from 45mm on
• degree of protection IP20

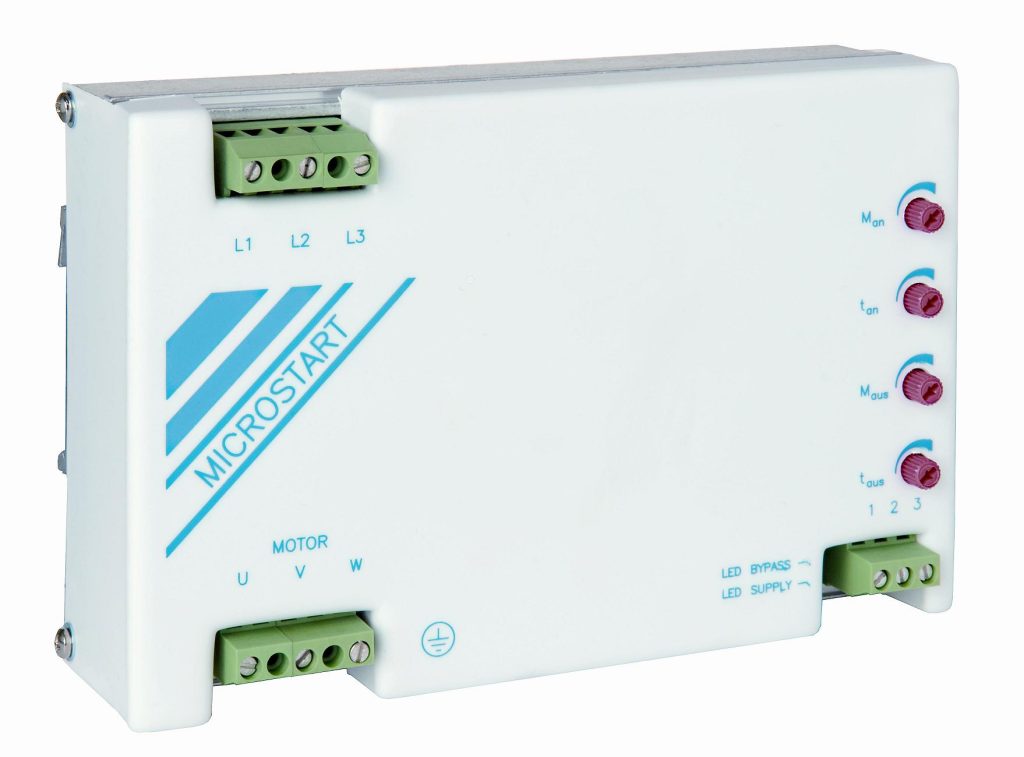

This range feature soft acceleration and deceleration, together with 4 separately adjustable parameters for starting torque, acceleration time, soft stop torque and deceleration time. The soft start and soft stop via control contact is also possible.

• three-phase controlled soft starter
• easy mounting, also for retrofitting into existing plants
• terminal arrangement suitable for switchgear connection
• for snap-mounting on 35mm standard rail
• integrated bypass relay
• no mains neutral conductor (N) required
• functional peak current reduction
• degree of protection IP 20

The MiniStart Units feature soft acceleration and deceleration 4 separately adjustable parameters, starting torque, acceleration time, soft stop torque and deceleration time together with the following features

• potential-free input for soft start or soft stop - control voltage 10 ... 30VDC
• potential-free output for fault indication
• potential-free output for operational status *- loadable with 250V/8A each
• temperature monitoring
• phase-failure monitoring during ramp-up

Properties of these Units include,

• three-phase controlled soft starter
• easy mounting, also for retrofitting into existing plants
• terminal arrangement suitable for switchgear connection
• for snap-mounting on 35mm standard rail
• integrated bypass relay
• extensive monitoring functions
• robust metal housing
• no mains neutral conductor (N) required
• special voltages up to 600V
• functional peak current reduction
• degree of protection IP 20

Functions of this Unit include,

• 4 logic inputs, 2 logic outputs,
  3 relay outputs and 1 analog output
• display of electrical quantities, of load
  condition and operating times
• torque control
• acceleration time monitoring
• starter bypassed with external contactor
• starter can be integrated into
  delta connection of the motor

Properties of the Unit include,

• three-phase fully controlled soft starter
• controlled by microcontroller
• torque controlled during acceleration phase
• integrated motor protection
• motor PTC connection
• protected against underload and overvoltage
• RS 485 interface integrated (Modbus)
• integrated operating unit
• degree of protection: IP 20 (up to 55kW w/o terminals), otherwise IP 00

Functions ofd this Unit include,

• soft acceleration and deceleration
• potential-free control input for
  soft acceleration and deceleration
• 4 separately adjustable parameters
  accel. time, start voltage, decel. time,
  max. start current
• boost-start selectable
• Motor PTC
• current controlled start-up with external transformer (transformer has to be ordered separately

Properties of this Unit include,

• two-phase controlled soft starter
• controlled by microcontroller
• optimized soft start
• heatsink temperature detection
• connection in the motor delta winding (cost saving via
  smaller rating)
• current and torque reduction during acceleration
• easy mounting, also for retrofitting into existing plants
• integrated bypass relay
• parameterization by means of four potentiometers
• no additional control voltage required
• no mains neutral conductor (N) required
• economically priced substitute for star-delta starters
• control outputs with spring-loaded terminals
• compact design, 103mm width
• degree of protection IP20
